    DicomAssociation Class
    In This Topic
    Class representing a single DICOM Association

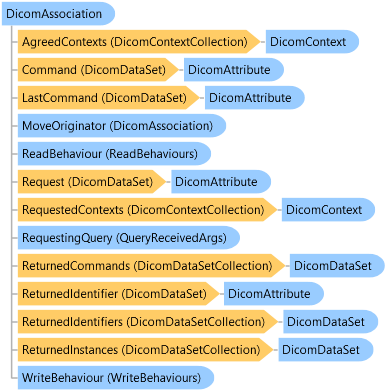

    Object Model
    DicomAssociation ClassDicomContextCollection ClassDicomContext ClassDicomDataSet ClassDicomAttribute ClassDicomDataSet ClassDicomAttribute ClassDicomAssociation ClassReadBehaviours ClassDicomDataSet ClassDicomAttribute ClassDicomContextCollection ClassDicomContext ClassQueryReceivedArgs ClassDicomDataSetCollection ClassDicomDataSet ClassDicomDataSet ClassDicomAttribute ClassDicomDataSetCollection ClassDicomDataSet ClassDicomDataSetCollection ClassDicomDataSet ClassWriteBehaviours Class
    Syntax
    'Declaration


    Public Class DicomAssociation
    'Usage


    Dim instance As DicomAssociation
    public class DicomAssociation
    public ref class DicomAssociation
    Remarks

    A DicomAssociation Object represents the current state of an association, and may either be created automatically in response to an incoming query request, or explicitly by the client program. Methods of this object are used to send data, images, and verification requests. There is not a one-to-one correspondence between DicomAssociations and associations, as one incoming association may cause several DicomAssociation objects to be produced, one in response to each incoming command, and likewise, an outgoing DicomAssociation object may during its life serve more than one association, but at a given time, each association is represented by one, and only one DicomAssociation.

    Inheritance Hierarchy

    System.Object
       DicomObjects.DicomAssociation

    Requirements

    Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

    See Also

    Reference

    DicomAssociation Members
    DicomObjects Namespace
